BLDC Brushless Motor Solutions

A Complete Brushless DC Drive Platform

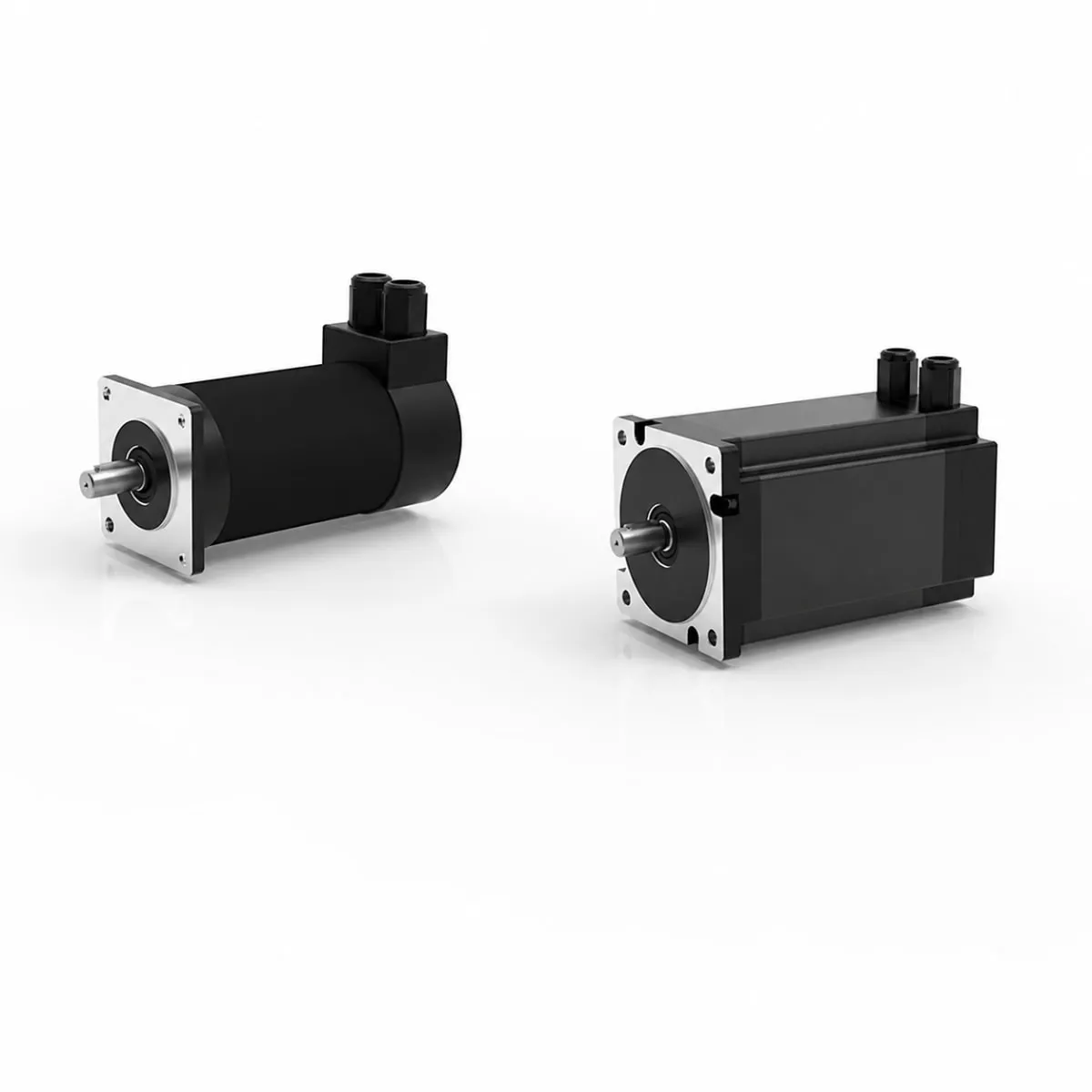

The BLDC range supplied by Motordrives Australia is built around the MiniTecno “small but strong” BL series brushless DC motor, available across five frame sizes with torque ratings from 0.22 Nm to 2.1 Nm at 24V, 36V or 48V. The same motor is used standalone, or combined with a planetary, worm, helical parallel or helical bevel gearbox, so the right reduction type and ratio can be matched to your application without changing the underlying motor platform.

Choosing The Right Gearbox Configuration

• Standalone BL motors: for direct-drive applications or where you are supplying your own reduction.

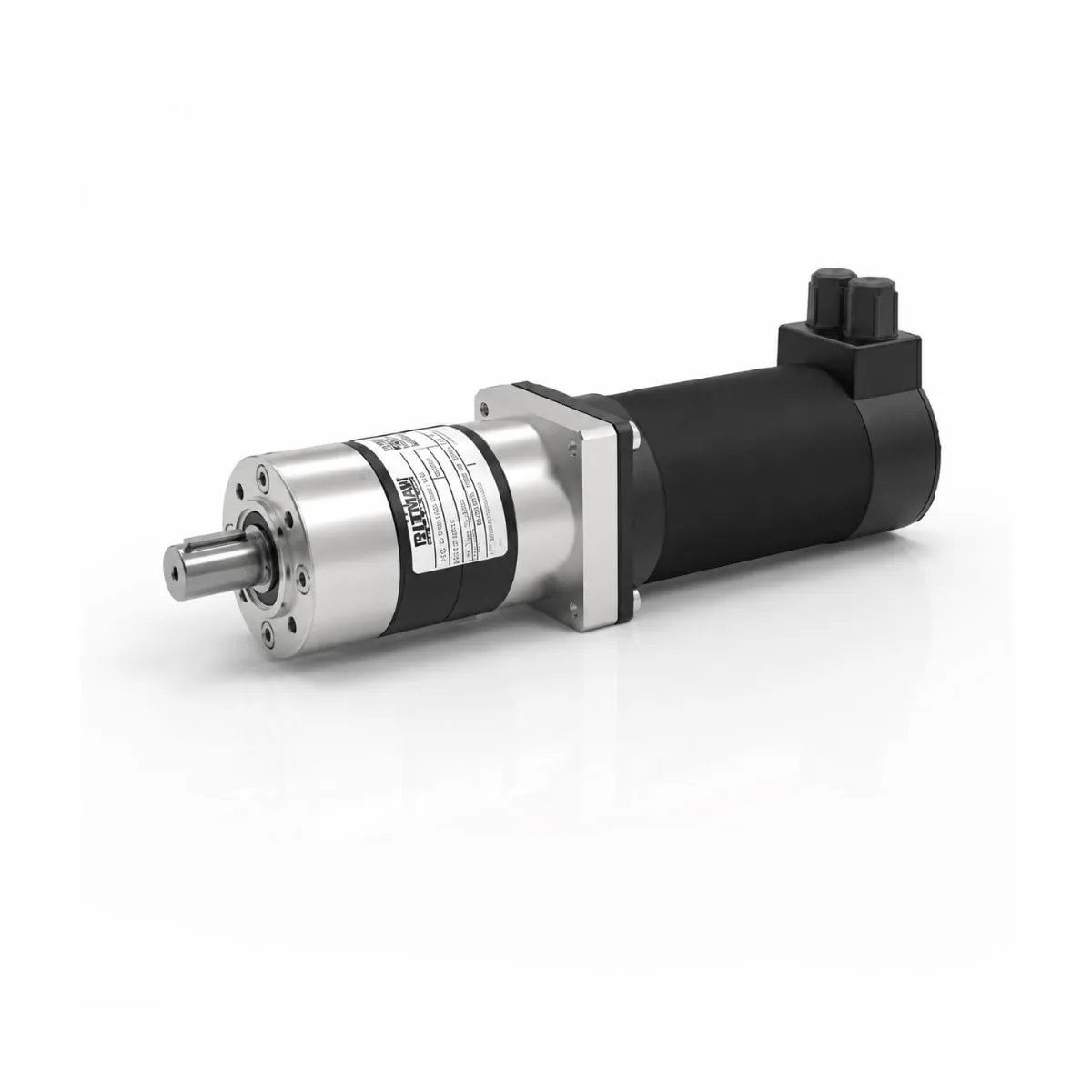

• BLP planetary gearmotors: for the highest torque density in the smallest footprint, suited to robotics, positioning and automation.

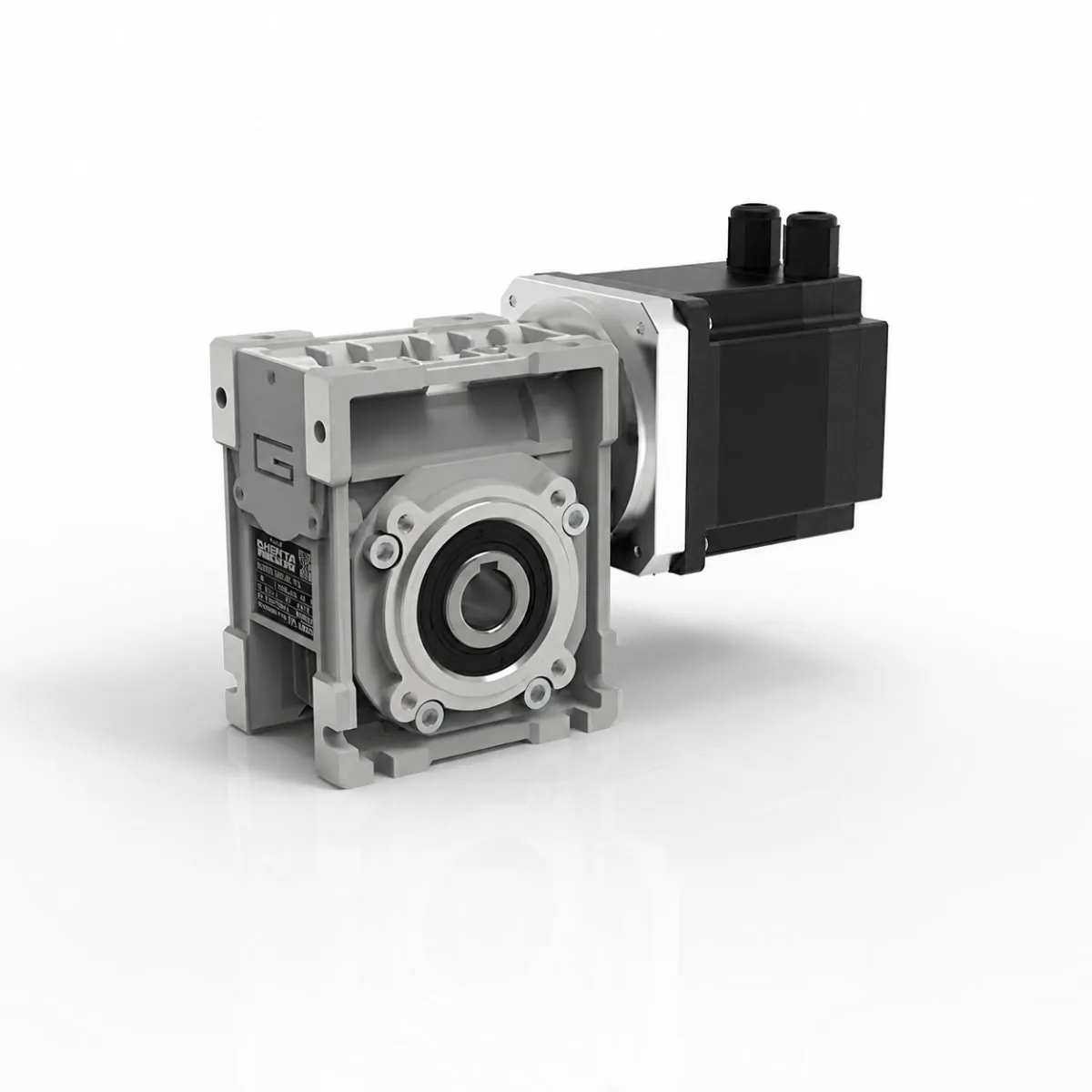

• BLCM wormgearmotors: for high single-stage reduction ratios and, at higher ratios, self-locking holding without a separate brake.

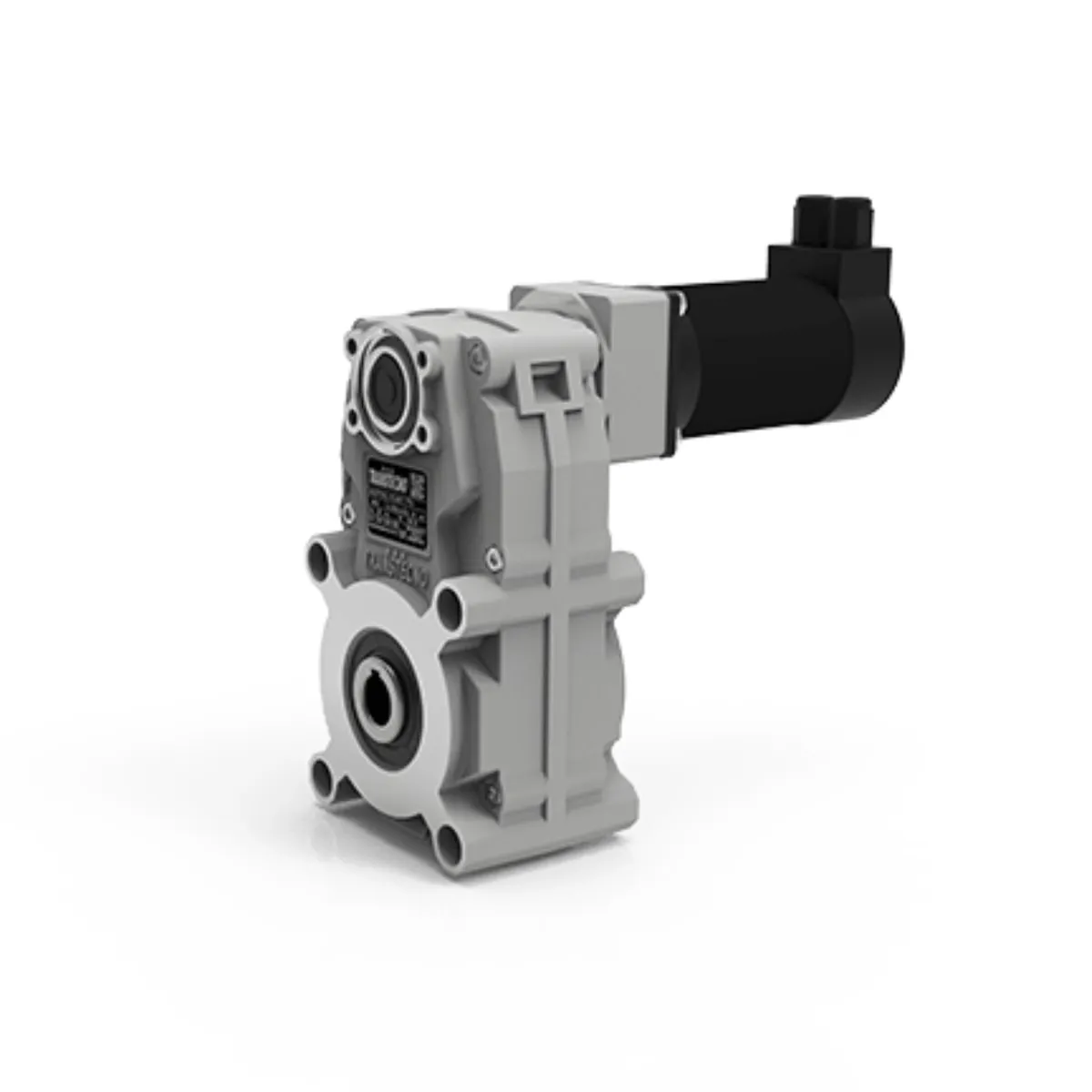

• BLFT helical parallel gearmotors: for higher mechanical efficiency than worm reduction, with a hollow output shaft for direct driven-shaft mounting.
• BLCMB helical bevel gearmotors: for right-angle (orthogonal shaft) output, where space constraints rule out an in-line arrangement.

Matching A BLD Controller

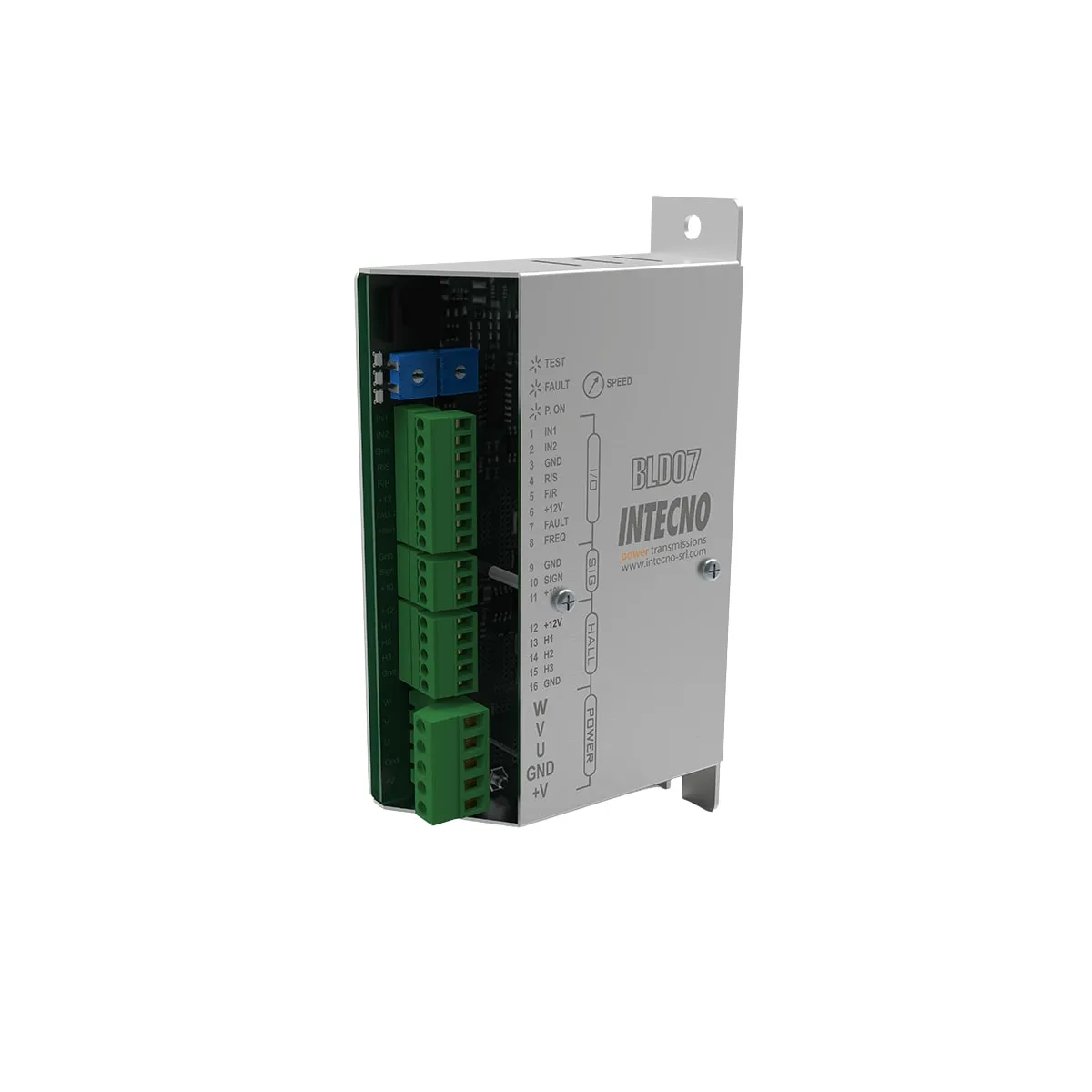

Every motor and gearmotor in the BLDC range is designed to pair with the Transtecno BLD series of controllers, from the entry-level BLD07-IT analog/PWM drive through to the BLD15 and BLD60 Digital for networked and torque-mode applications, and the fully digital, Space Vector Modulation-based BLDT60 Digital Plus for servo-style velocity, torque and position control with Safe Torque Off inputs.

Support For New Projects And Replacement Requirements

Motordrives Australia can help with both new machinery requirements and replacement enquiries across the BLDC range. Send through your required torque, speed, ratio, voltage and control method, and our team can help confirm the right motor, gearbox and controller combination for your application.
