01
Application-Based Selection
Recommendations consider voltage, load, output speed, duty cycle, fitment and environment rather than relying on power alone.
CategoryDC Electric Motors
Explore The Range
DC Electric Motors
Explore 12V and 24V DC motors and gearmotors for industrial machinery, battery-powered equipment, automation and OEM applications.
Explore The Range
BLDC Brushless Motor Solutions
The complete MiniTecno and Transtecno BLDC range, combining low-voltage brushless DC motors with planetary, worm, helical parallel and helical bevel gearbox options, plus the BLD series controllers needed to drive them.
View Collection
Explore The Range
Worm Gearboxes
Compact, self-locking right-angle worm gearboxes and worm gearmotors from Transtecno, with high gear ratios, die-cast aluminium housings and maintenance-free lifelong lubrication.
View Collection
Aluminium BLDC Gearmotor Range
Transtecno Alu BLDC Brushless DC Gearmotors
The Transtecno Alu BLDC range combines low voltage 24, 36 and 48 Vdc brushless DC motors with aluminium helical bevel, helical parallel, worm and planetary gearbox options for compact, high-efficiency DC drive applications.
View Product
Aluminium DC Gearmotor Range
Transtecno Alu DC Gearmotors
The Transtecno Alu DC range combines EC permanent magnet and ND rare earth DC motors with aluminium helical, bevel helical, helical parallel, worm, pre-stage worm and double reduction worm gearmotor options.
View Product
DC Worm Gearmotor
Transtecno ECM DC Wormgearmotors
Compact ECM DC wormgearmotors from the Transtecno ROBIN range, pairing low voltage ferrite permanent magnet DC motors with CM worm gearboxes for right-angle geared drive applications.
View Product

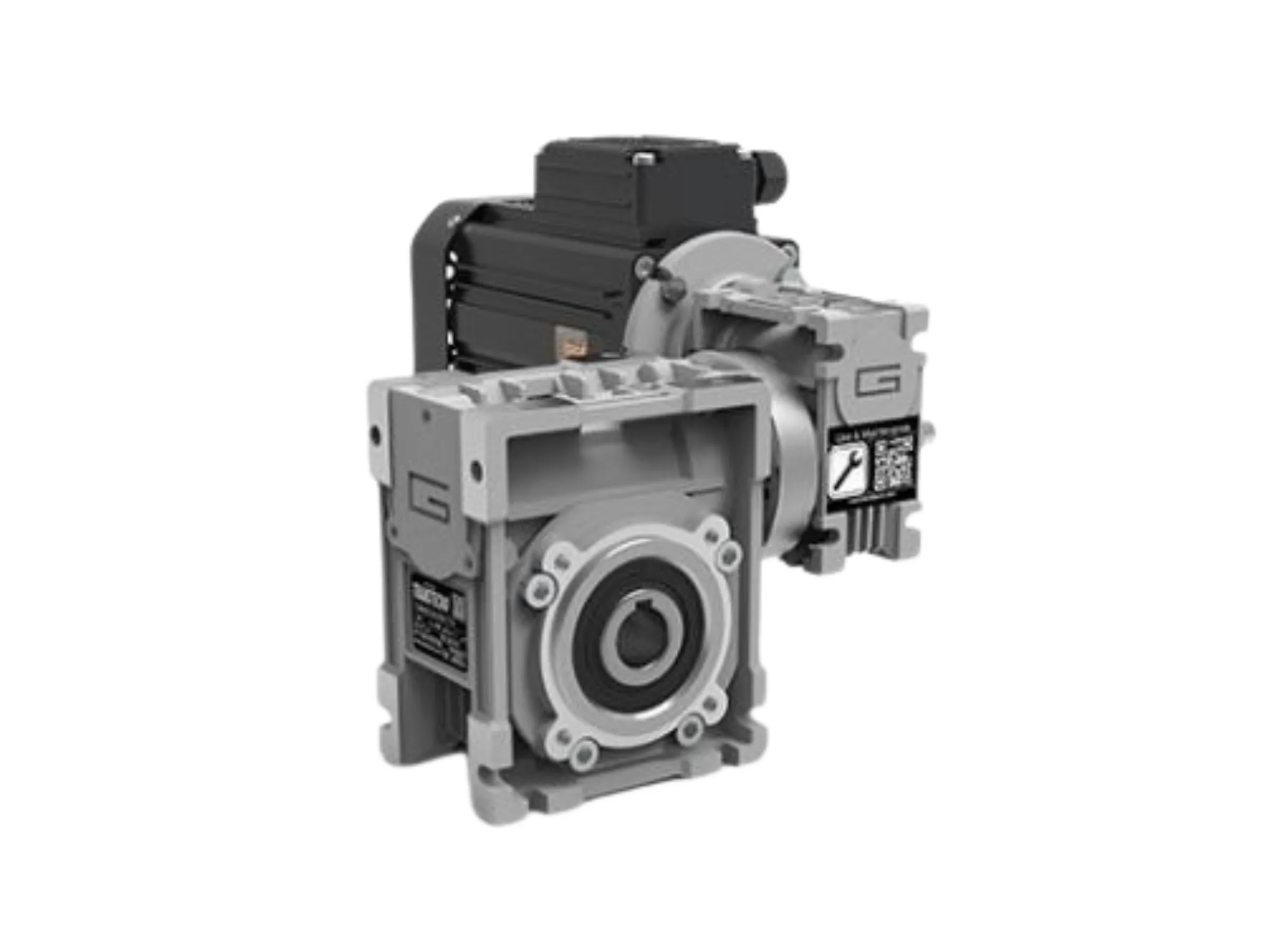

DC Double Reduction Worm Gearmotor
Transtecno Permanent Magnets DC Combination Gearmotors ECMM
ECMM permanent magnet DC combination gearmotors combine two worm gear drives with a ferrite permanent magnet DC motor for compact low voltage applications needing very high reduction ratios.
View Product

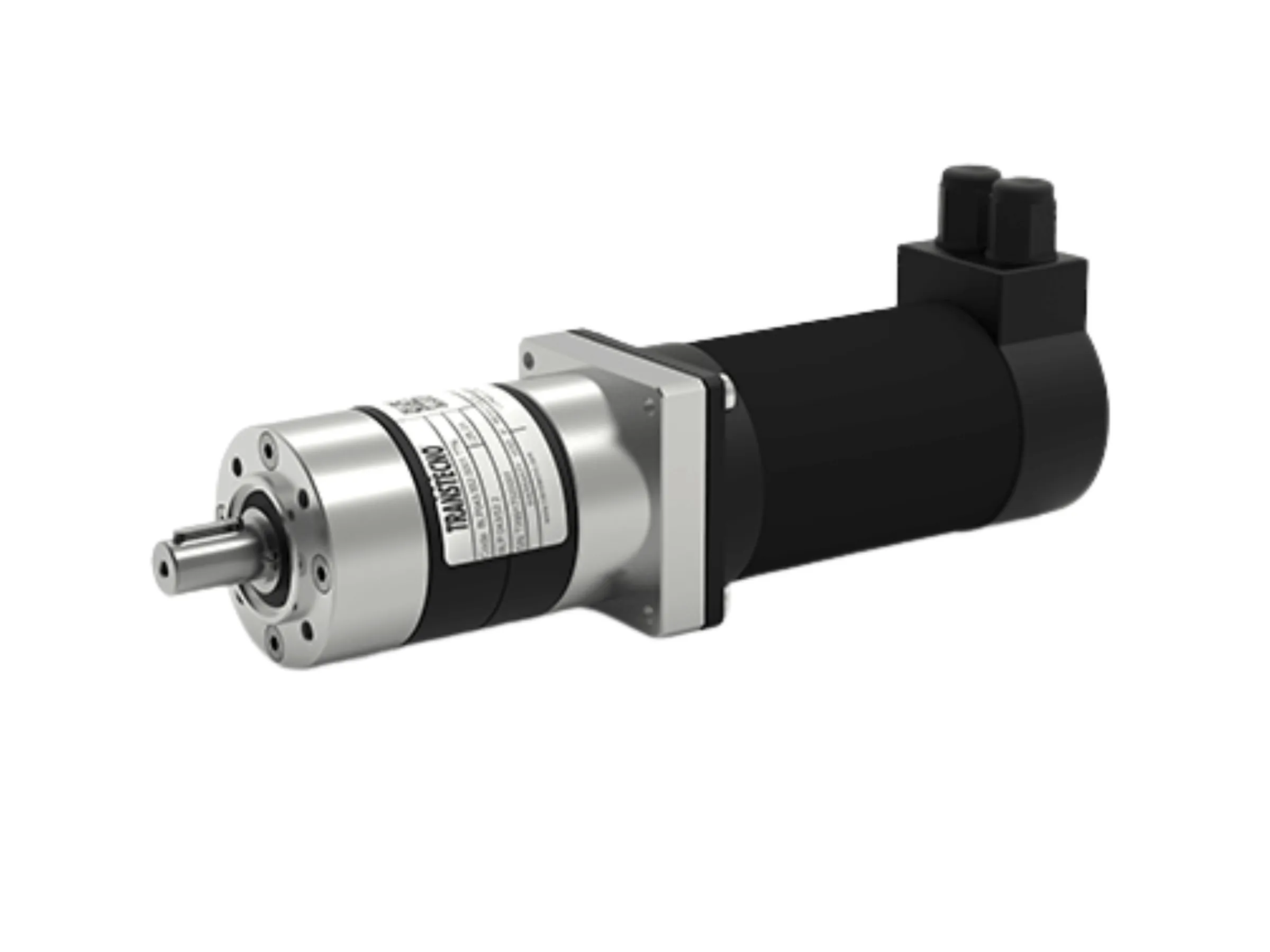

DC Planetary Gearmotor
Transtecno DC Planetary Gearmotors NDP ECP
Compact DC planetary gearmotors combining planetary gearboxes with NDP neodymium or ECP ferrite permanent magnet DC motors for low voltage industrial drive applications.
View Product

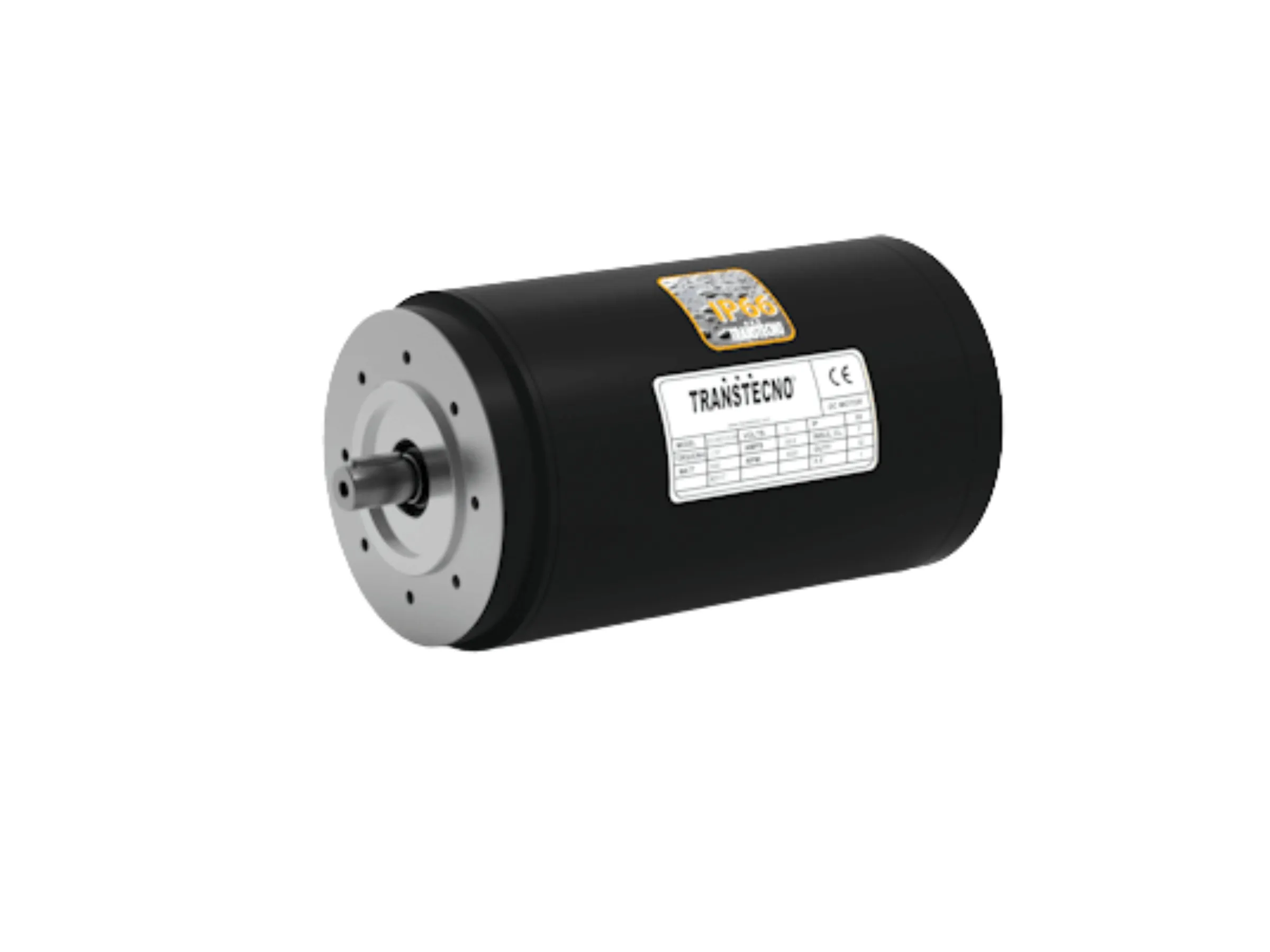

IP66 DC Electric Motor
Transtecno IP66 DC Electric Motors – Ferrite EC IP66
IP66 rated ferrite permanent magnet DC motors from 100 W to 800 W S2. Compact tubular design with low voltage 12 or 24 Vdc supply, built for washdown and harsh environments.
View Product

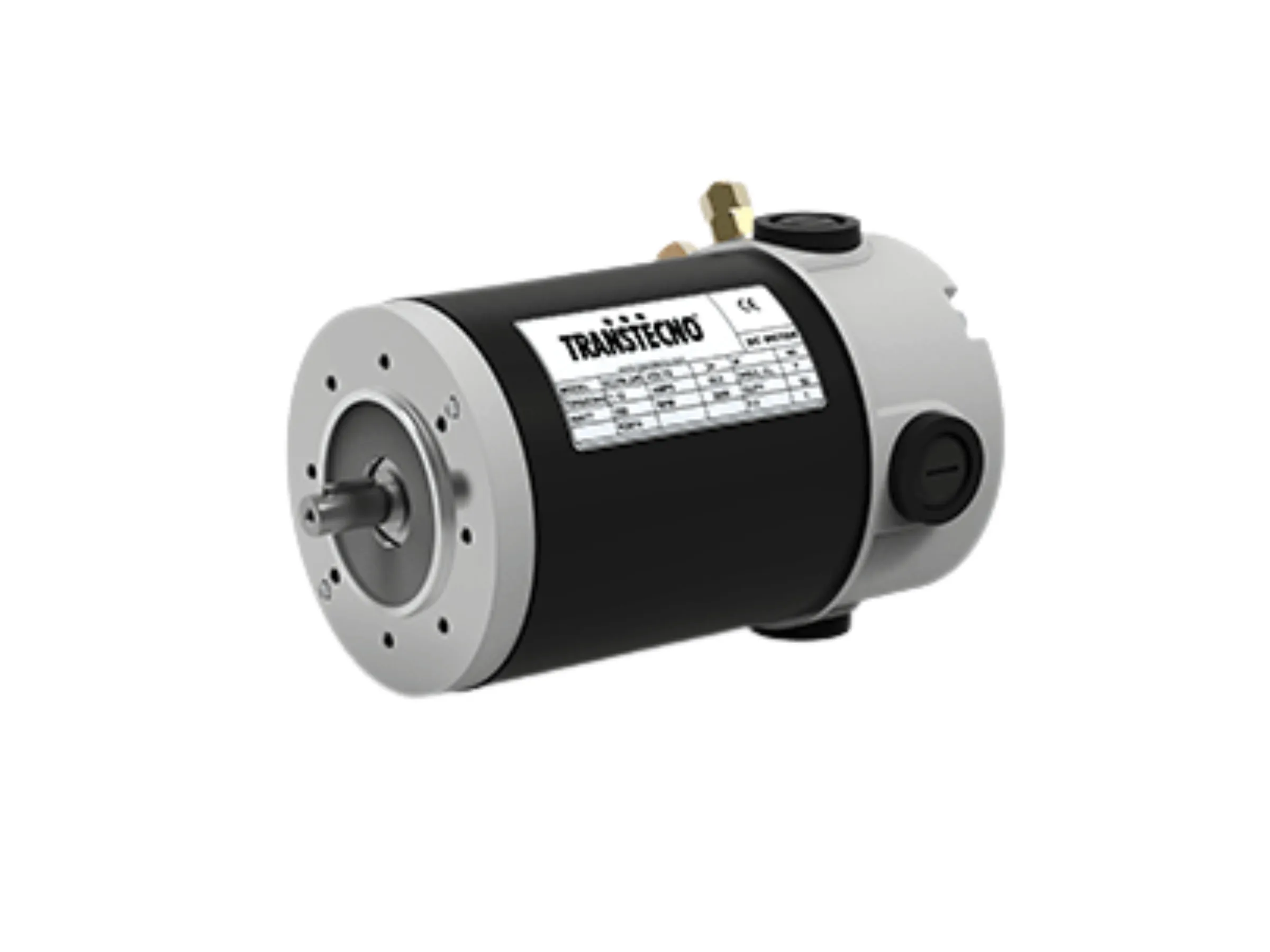

Ferrite Permanent Magnet DC Electric Motor
Transtecno Permanent Magnets DC Electric Motors EC
Compact EC series ferrite permanent magnet DC motors for low voltage industrial drive systems, available in multiple frame sizes with high starting torque and 30 to 800 W S2 power ratings.
View Product

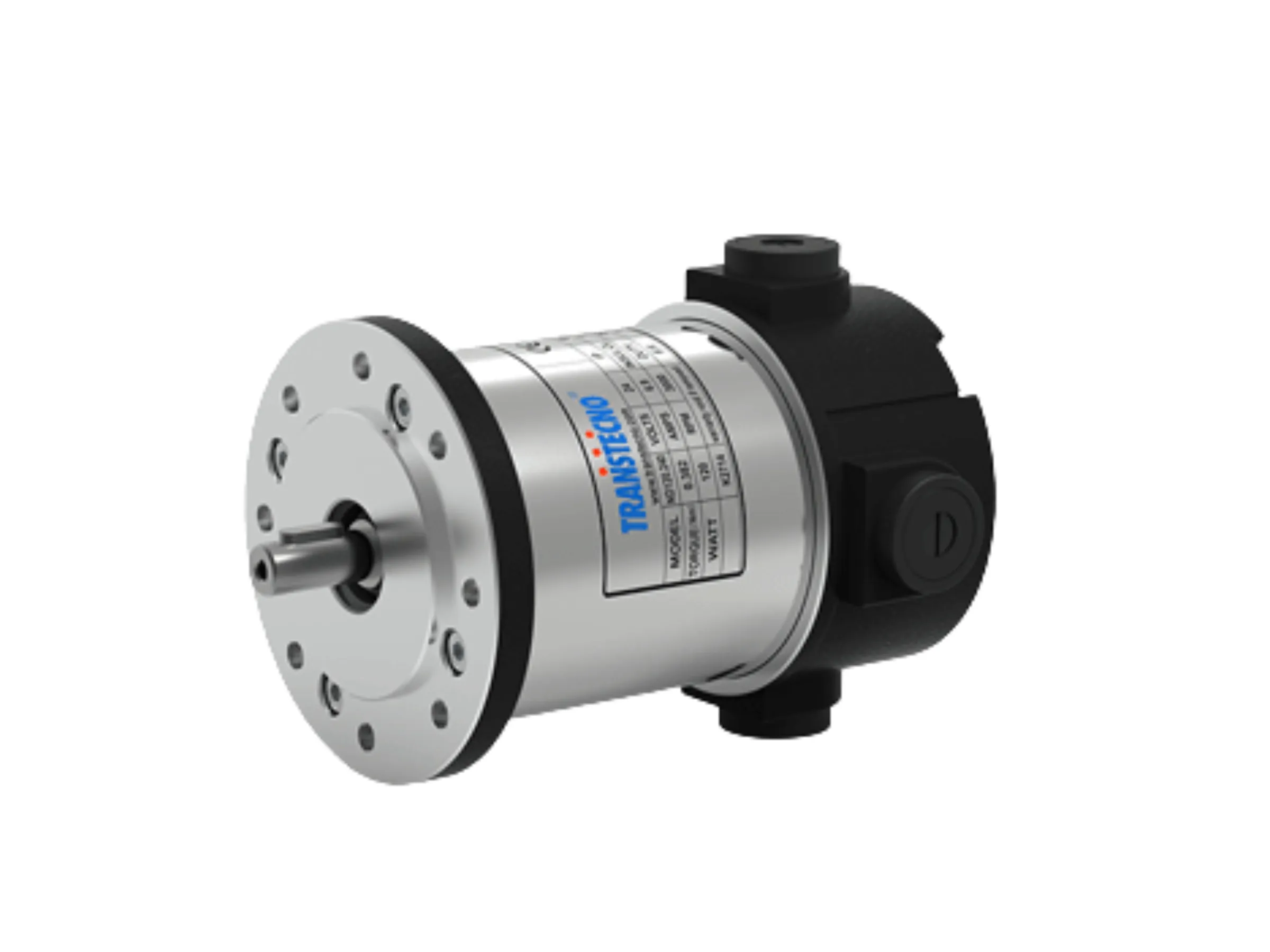

Neodymium Permanent Magnet DC Motor
Transtecno Rare Earth DC Electric Motors ND
Compact ND series rare earth DC motors designed for high torque output from a small 65 mm diameter frame, available in 12 Vdc and 24 Vdc configurations.
View ProductCollection Overview
Low-Voltage DC Drive Solutions For Industrial Machinery
Motordrives Australia supplies Transtecno permanent magnet DC motors and DC gearmotors for applications where compact size, low-voltage operation and dependable starting torque matter.
The range includes EC ferrite permanent magnet motors from 30 W to 800 W S2 and compact ND neodymium motors in 160 W and 250 W S2 ratings. Standard options use 12 Vdc or 24 Vdc supply, with brake and encoder compatibility available on selected models.
For applications requiring lower output speed and increased torque, DC motors can be paired with planetary, helical, bevel, parallel or worm gearbox configurations. IP66 ferrite motors are also available for installations exposed to dust, water jets or regular washdown.
More About DC Electric MotorsConstruction, features and product selection information
Ferrite And Neodymium Permanent Magnet Motors
The Transtecno DC range includes EC ferrite permanent magnet motors and ND neodymium permanent magnet motors. EC motors cover a broad range of compact low-voltage applications, while ND motors use rare-earth magnets to provide higher torque and power from a smaller 65 mm motor frame.
The correct motor technology depends on the available installation space, required torque, operating duty and project budget. Selected EC and ND models can also be configured with brake or encoder options where the machinery requires holding, feedback or speed-related control.
Standalone DC Motors And Complete Gearmotors
A standalone DC motor is suitable when the driven equipment can use the motor speed and torque directly. When the application requires lower output speed, higher torque or a different shaft arrangement, the motor can be combined with a gearbox.
Available geared arrangements include compact planetary gearmotors, right-angle worm gearmotors, high-ratio double-reduction worm combinations and broader aluminium helical, bevel and parallel shaft gearmotor families.
IP66 Motors For Exposed Environments
The EC IP66 range is designed for machinery exposed to dust, moisture, outdoor conditions or washdown. These motors use sealed tubular construction and are rated to IP66 under IEC/EN 60529. Environmental suitability should still be checked against the cleaning method, chemical exposure, temperature and installation arrangement.
Selecting The Correct DC Drive
Begin with the available voltage, required output speed, load torque and duty cycle. Then confirm mounting position, shaft dimensions, available space, controller limits and environmental protection. For replacement enquiries, clear nameplate photos and overall dimensions help the Motordrives Australia team compare the existing unit with current options.
Where DC Electric Motors Are Used8 common applications and sectors
DC motors are commonly selected where machinery requires low-voltage power, compact dimensions, high starting torque or operation from a battery-based electrical supply.
- 01
Battery-Powered Machinery
12V and 24V DC motors suit mobile and battery-powered equipment where mains AC supply is unavailable.
- 02
Conveyors And Material Handling
DC gearmotors provide controlled low-speed drive for compact conveyors, feeders and handling equipment.
- 03
Industrial Automation
Compact motors and geared drives support positioning, indexing and controlled movement in automated machinery.
- 04
OEM Machinery
Machine builders can select standalone or geared DC configurations around voltage, space, shaft layout and duty cycle.
- 05
Agricultural Equipment
Low-voltage DC drives are used across feeding, irrigation, ventilation and mobile agricultural systems.
- 06
Washdown And Outdoor Equipment
IP66 ferrite DC motors are available where dust protection and resistance to powerful water jets are required.
- 07
Lifting And Positioning
High-ratio worm and planetary gearmotors suit low-speed adjustment, lifting and positioning mechanisms.
- 08
Mobile Equipment
Compact DC motors and gearmotors can be integrated into vehicles, service equipment and portable machinery.
Selection Support
Information To Prepare For A DC Motor Enquiry
DC motor selection depends on both the electrical supply and the mechanical load. These details help identify a suitable motor or gearmotor configuration.
- Available supply voltage and current limits
- Required output speed, torque or motor power
- Continuous, intermittent or short-time duty cycle
- Mounting position, shaft arrangement and available space
- Brake, encoder or speed-control requirements
- Dust, moisture, washdown, heat or outdoor exposure
DC Motor Range At A Glance
The collection includes standalone permanent magnet motors and complete geared drive assemblies for low-voltage machinery.
- Voltage
- 12 Vdc and 24 Vdc
- Motor Technologies
- EC ferrite and ND neodymium
- Configurations
- Standalone motors and DC gearmotors
- Environmental Option
- IP66 models available
Why Motordrives
Practical Support For DC Motor Selection
Motordrives Australia helps maintenance teams, engineers and machinery builders compare DC motor technologies and gearbox arrangements before supply.
02
Motor And Gearbox Options
The Transtecno platform provides standalone DC motors and multiple geared arrangements from the same product family.
03
Replacement And Project Support
Our team can review nameplates, dimensions and machinery requirements for replacement or new-build enquiries.
FAQs
DC Electric Motor FAQs
What information should I provide for a DC motor enquiry?
Provide the supply voltage, required speed, torque or power, duty cycle, mounting details, shaft requirements and operating environment. For a replacement, include clear photos of the existing motor and nameplate.
What is the difference between ferrite and neodymium DC motors?
Ferrite permanent magnet motors provide a broad and practical DC motor range. Neodymium motors use rare-earth magnets to achieve higher torque and power from a more compact motor frame.
Do you supply both 12V and 24V DC motors?
Yes. The Transtecno DC range includes 12 Vdc and 24 Vdc options across multiple standalone motor and gearmotor families. The available voltage should be confirmed for the selected model.
When should I choose a DC gearmotor instead of a standalone motor?
A gearmotor is used when the application needs lower output speed and higher output torque than a standalone motor can provide. The gearbox also determines the output shaft arrangement and mounting configuration.
Are IP66 DC motors available?
Yes. Transtecno EC IP66 ferrite permanent magnet DC motors are available for applications requiring protection against dust ingress and powerful water jets. Final suitability should be checked against the operating environment.
Need Help Selecting A DC Electric Motor?
Send your voltage, speed, torque, duty cycle and installation details and our team can help identify a suitable motor or geared DC drive direction.
