Practical Application Guidance
We help customers think through motor data, voltage, horsepower and accessory requirements before a DC drive is specified.
CategoryKB Electronics DC Drives
KB Electronics DC Drives
KB Electronics DC Drives For Variable Speed Motor Control
KB Electronics DC drives provide variable speed control for permanent magnet, shunt wound and universal DC motors used across industrial machinery, OEM equipment and process applications. The range covers sub-fractional through to 5 horsepower, with single-phase 115 or 230 VAC input depending on the model.
DC Motor Controller

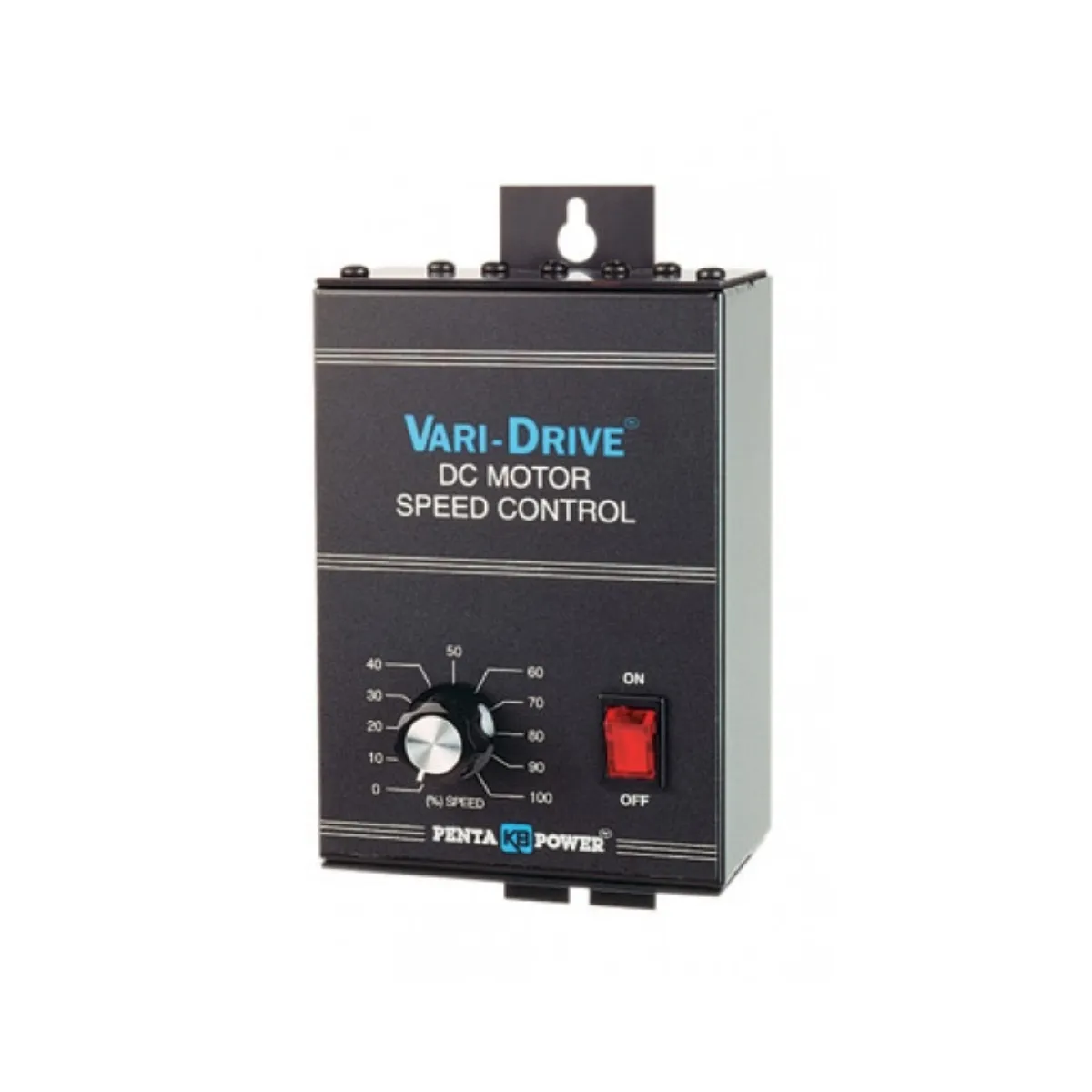

KB Electronics KBWM Vari-Drive SCR DC Motor Control
The KB Electronics KBWM Vari-Drive is an SCR variable speed DC motor control for permanent magnet, shunt wound motors and magnetic particle clutches, covering 1/100 to 1/3 HP at 90 VDC and 1/50 to 3/4 HP at 180 VDC, in a rugged all-metal NEMA 1 enclosure.
View Product
DC Motor Controller

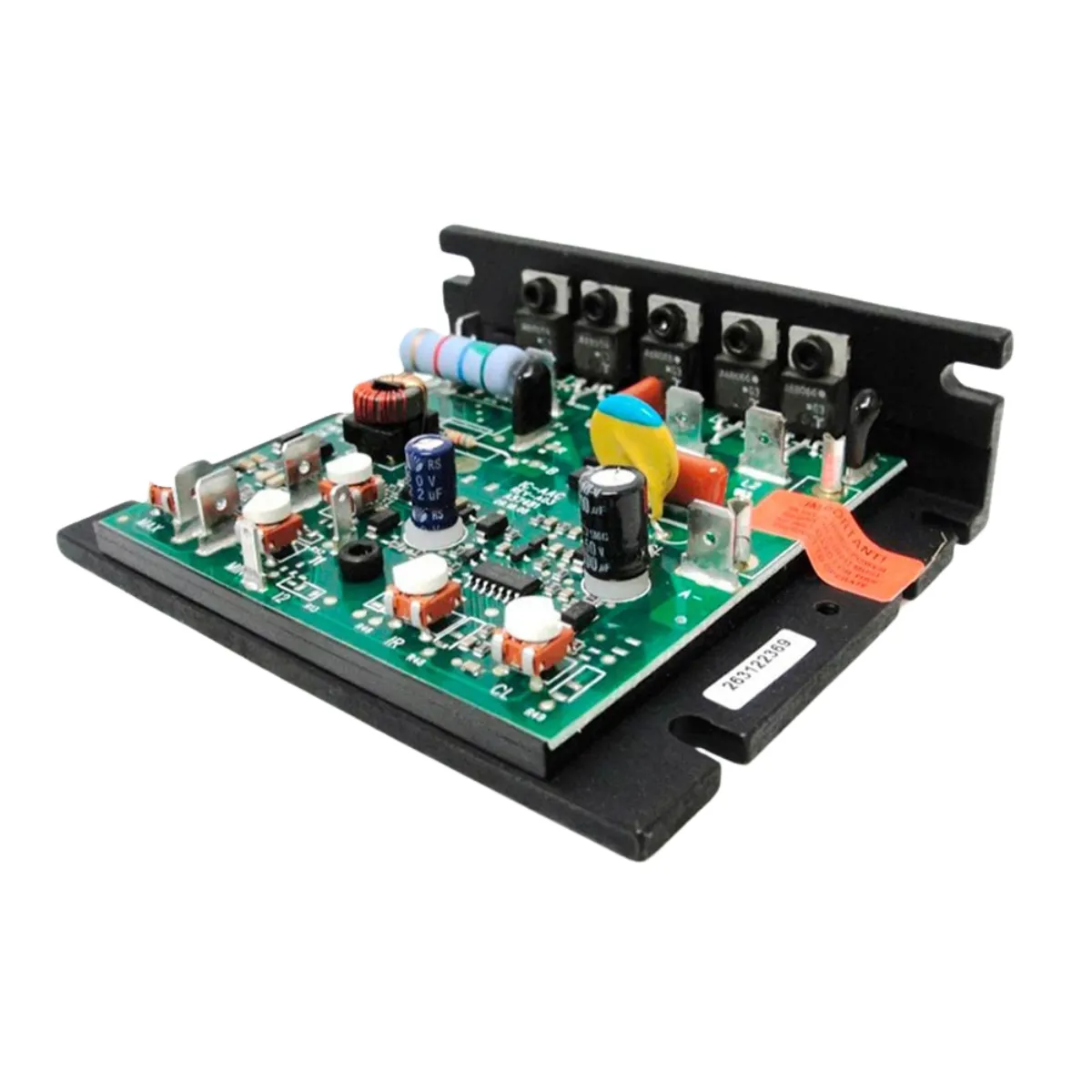

KB Electronics KBIC Variable Speed DC Motor Control
The KB Electronics KBIC is a compact full-wave variable speed DC motor control for shunt wound, permanent magnet and AC/DC motors, covering 1/100 to 1.5 HP at 115 VAC and 1/50 to 3 HP at 230 VAC, with a Plug-in Horsepower Resistor and optional Auxiliary Heatsink for extended ratings.
View Product
DC Motor Controller

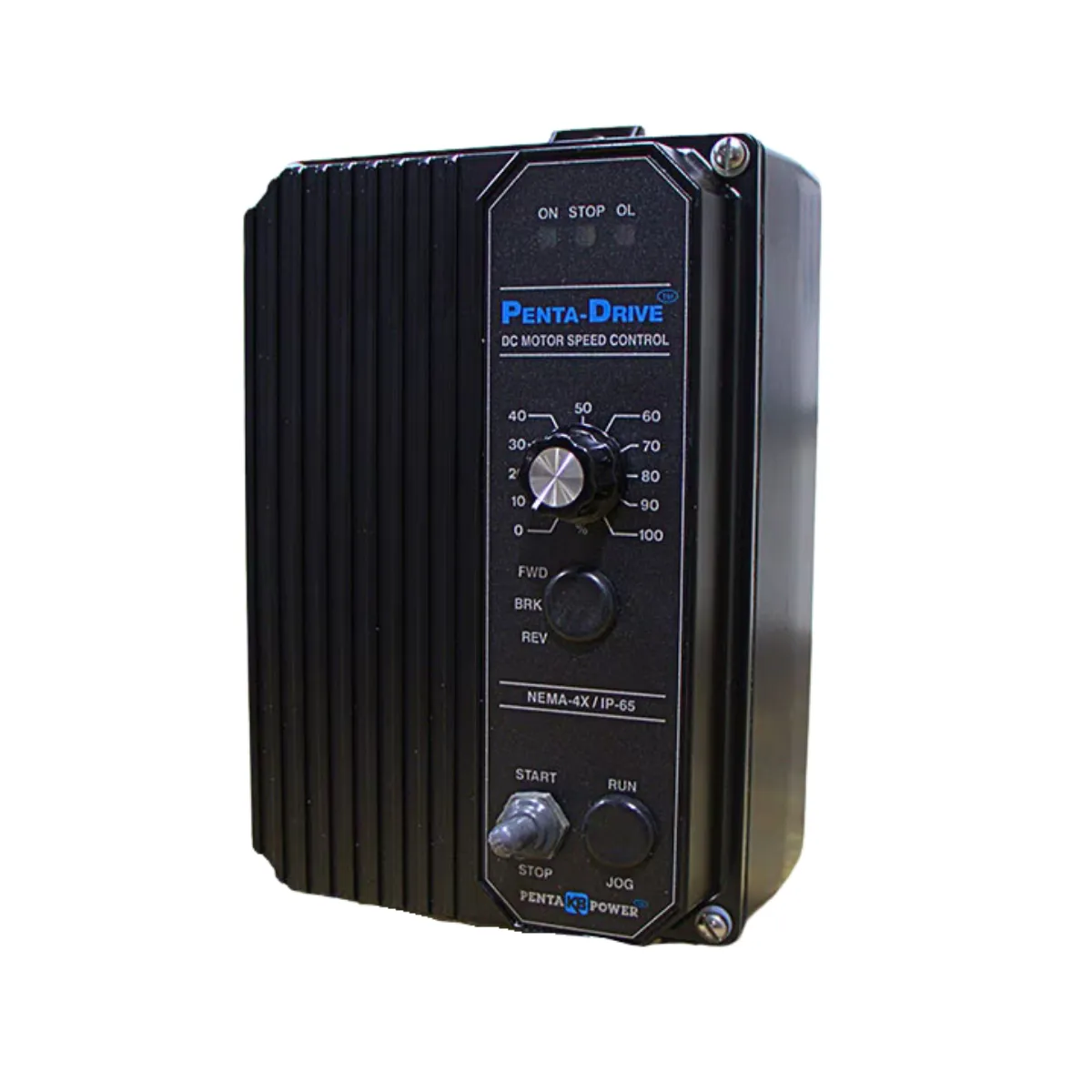

KB Electronics KBPC-240D Penta-Drive SCR DC Motor Control
The KB Electronics KBPC-240D Penta-Drive is a variable speed-torque SCR DC motor control for shunt wound and PM motors, covering 1/50 to 1 HP at 115 VAC and 1/25 to 2 HP at 230 VAC, in a washdown and watertight die-cast aluminium NEMA 4X / IP 65 enclosure suited to indoor and outdoor use.
View Product
DC Motor Controller

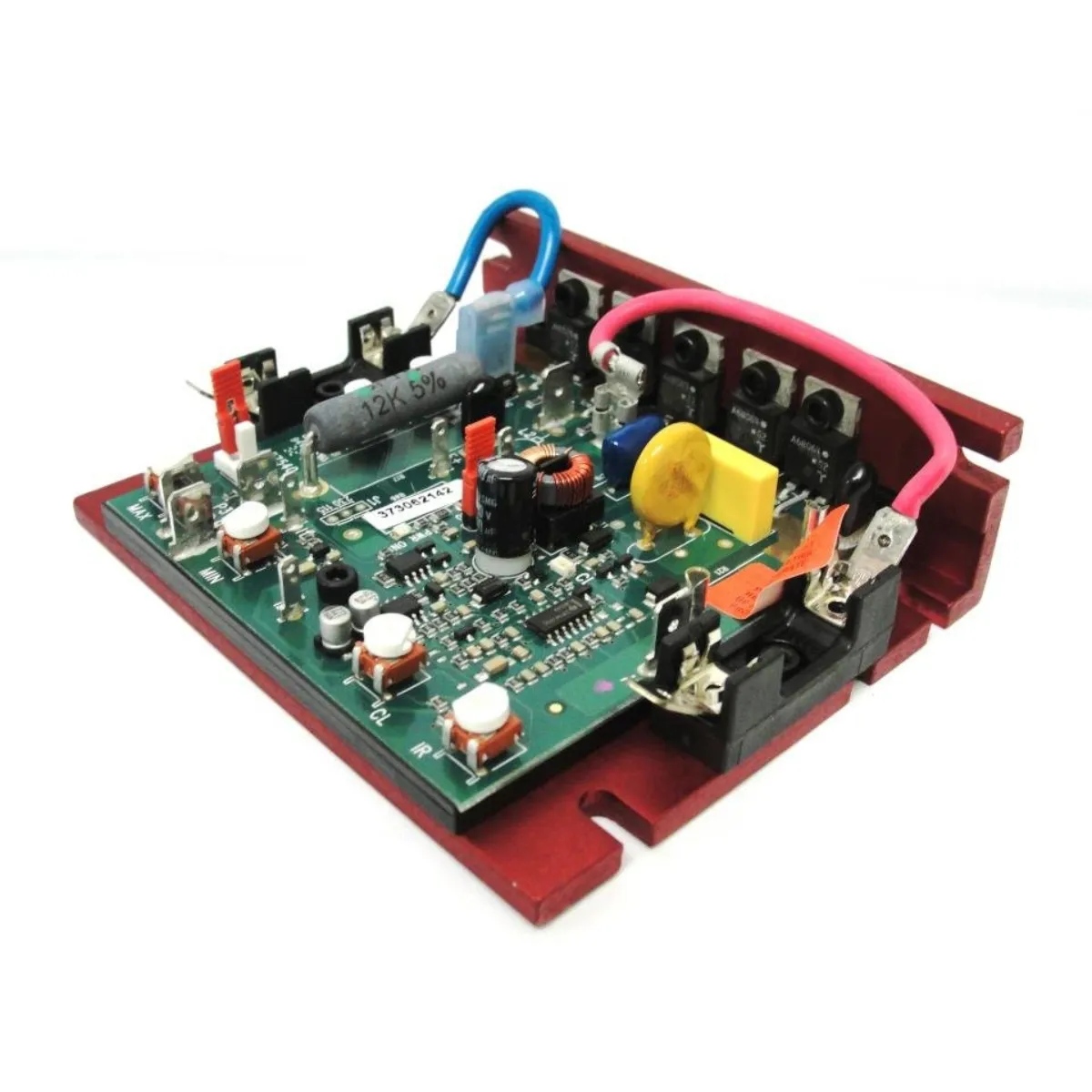

KB Electronics KBMM Variable Speed DC Motor Control
The KB Electronics KBMM is a full-wave variable speed DC motor control for shunt wound and PM motors, covering 1/100 to 1.5 HP at 115 VAC and 1/50 to 3 HP at 230 VAC, with SMT construction, a Direct-Fed current limit circuit and a 5 year warranty.
View Product
DC Motor Controller

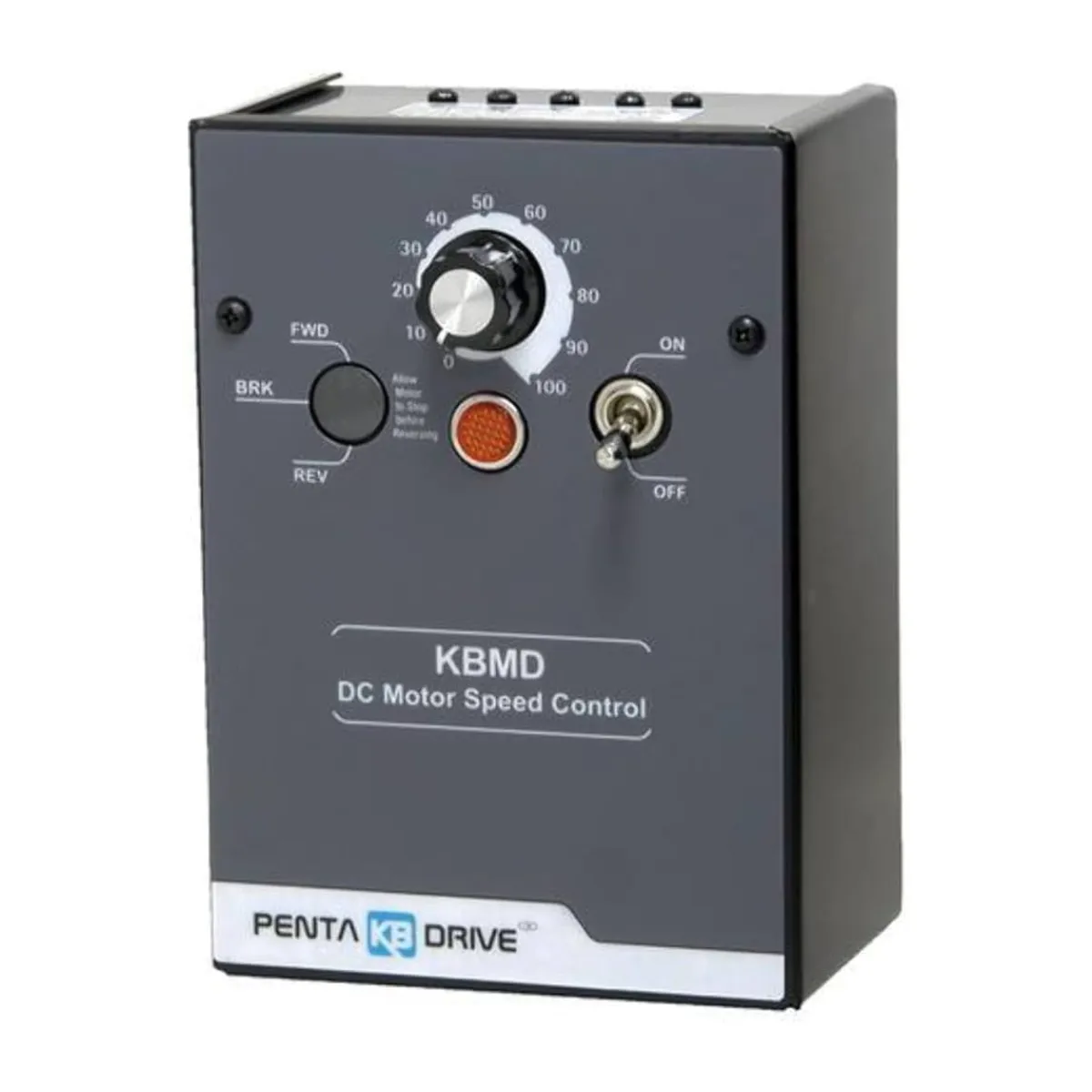

KB Electronics KBMD-240D Multi-Drive DC Motor Control
The KB Electronics KBMD-240D Multi-Drive is a single model variable speed DC motor control for shunt wound and PM motors, handling both 115 and 230 VAC line inputs via a built-in Dual Voltage Switch, covering 1/100 to 1 HP at 115 VAC and 1/50 to 2 HP at 230 VAC.
View Product
DC Motor Controller

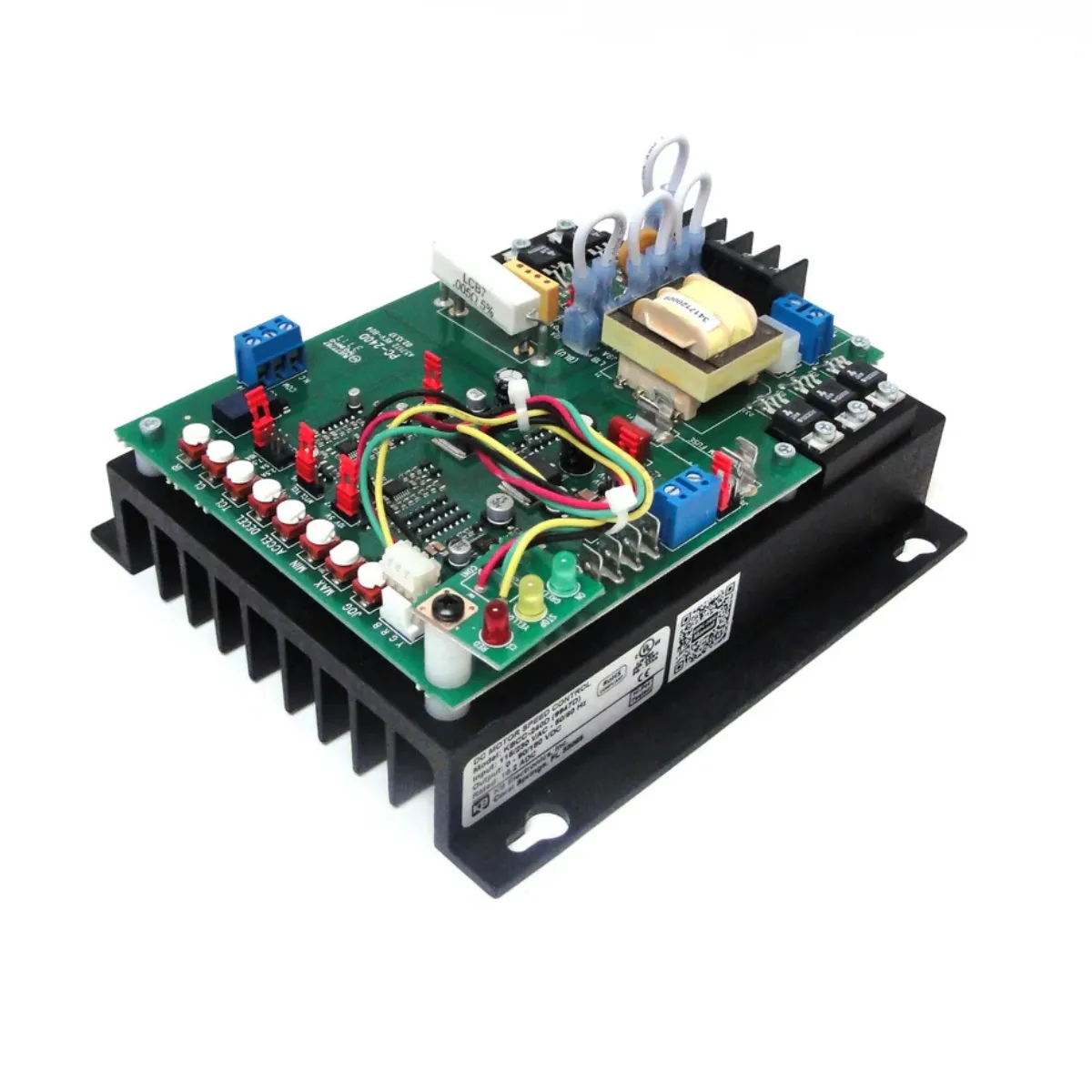

KB Electronics KBCC Chassis Mount DC Motor Control
The KB Electronics KBCC is a chassis mount variable speed SCR DC motor control for shunt wound and PM motors through 3 HP, available in unidirectional and reversing (KBCC-R) models with anti-plug instant reverse and solid state dynamic braking.
View Product
DC Motor Controller

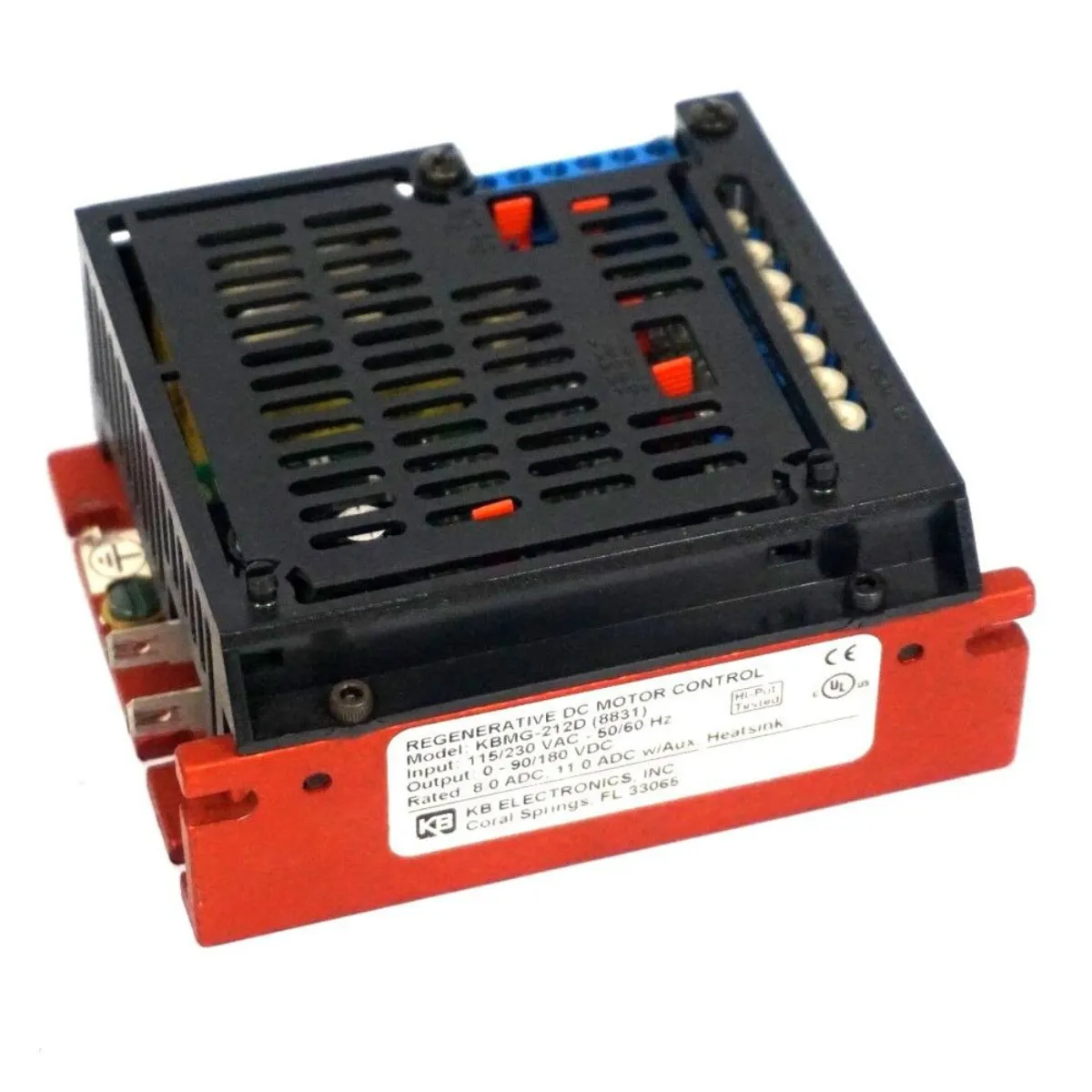

KB Electronics KBMG Series Regenerative DC Motor Control
The KB Electronics KBMG Series is an ultracompact, full-wave, 4-quadrant regenerative SCR drive for bidirectional speed and torque control of PM and DC shunt motors, with the KBMG-21D covering smaller fractional loads and the KBMG-212D covering 1/50 to 2 HP at 115/230 VAC.
View Product
DC Motor Controller
KB Electronics KBPB Cycler Run-Brake-Reversing DC Motor Control
The KB Electronics KBPB 'Cycler' is a variable speed DC motor control for PM and shunt wound motors through 3 HP, providing anti-plug instant reversing, solid state dynamic braking and rapid run-brake cycling in a compact chassis design.
View Product
DC Motor Controller

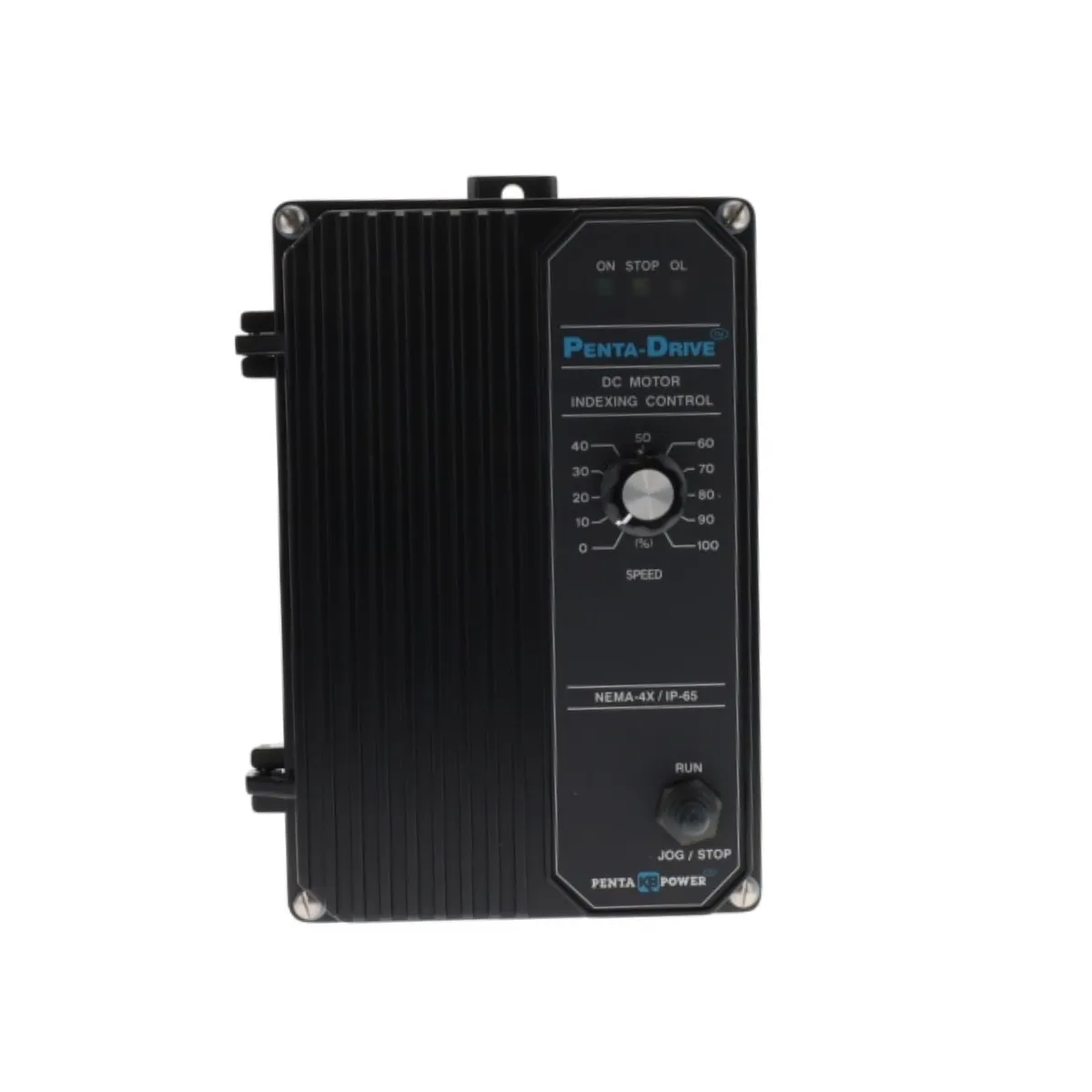

KB Electronics KBPI Series Indexing and Cycling DC Motor Control
The KB Electronics KBPI Series is a NEMA 4X / IP 65 indexing and cycling SCR control for PM DC motors, designed specifically for indexing applications, with isolated Run, Jog and Stop logic in unidirectional (KBPI-240D) and reversing (KBPI-240DR) models.
View Product
DC Motor Controller

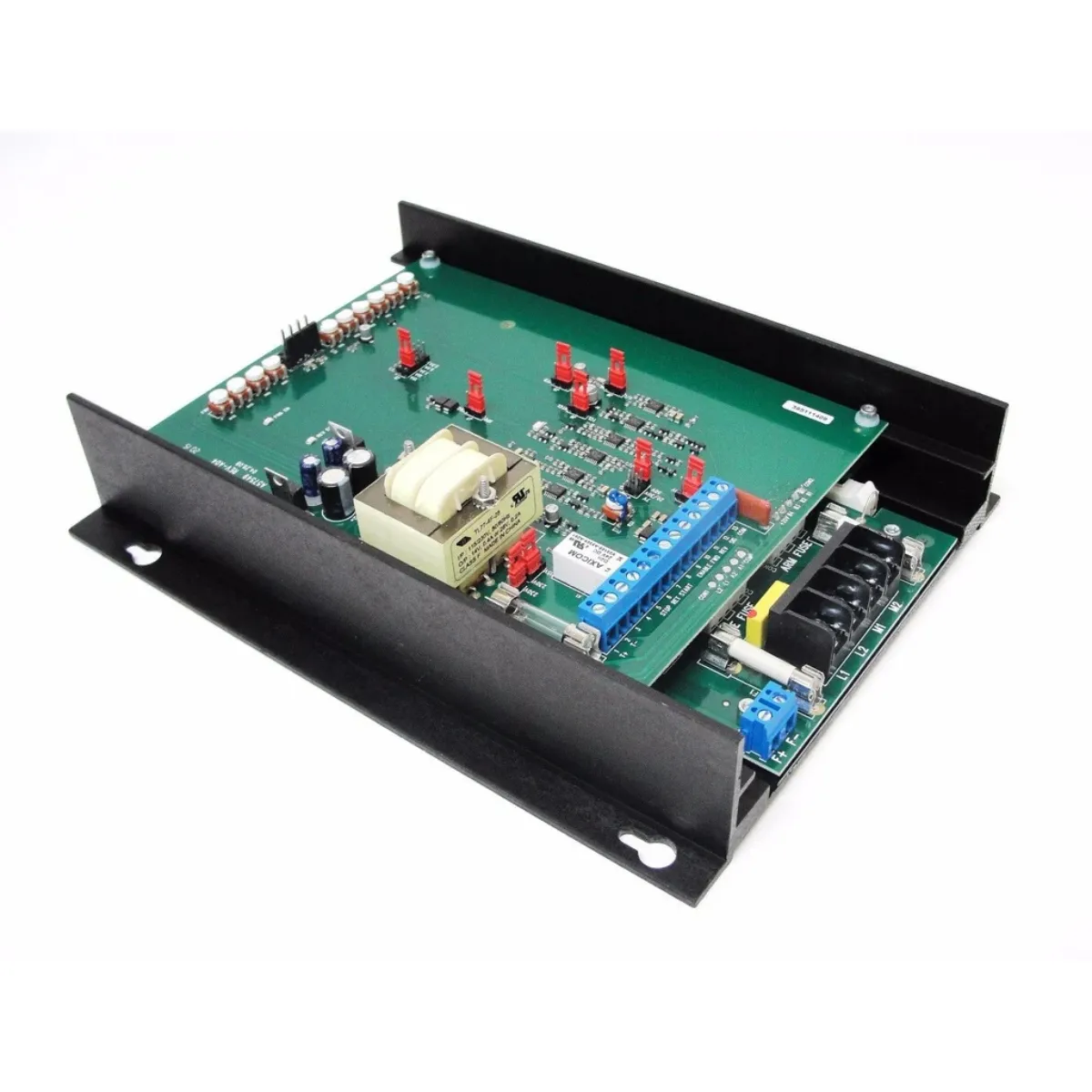

KB Electronics KBRG Regenerative DC Motor Drive
The KB Electronics KBRG is a full-wave, 4-quadrant regenerative drive for speed and torque control of PM and shunt DC motors, with the KBRG-240D covering 1 HP at 115 VAC / 2 HP at 230 VAC, and the KBRG-225D covering 1.5 HP at 115 VAC / 3 HP at 230 VAC.
View ProductRange Overview
DC Drives For Controlled Speed And Torque
KB Electronics DC drives are designed to control the speed of DC motors in machinery and equipment where adjustable speed, current limit protection and reliable operation are required.
These SCR and PWM-based drives are suited to permanent magnet, shunt wound and universal DC motors and provide speed regulation, current limit protection and accessory support such as plug-in horsepower resistors for matching the drive to a specific motor.
The range includes Vari-Drive style SCR controls and other DC drive formats across common industrial voltage and horsepower requirements, with rugged NEMA 1 and other enclosure options available for different installation environments.
More About KB Electronics DC DrivesConstruction, features and product selection information
Overview
KB Electronics DC drives give Australian OEMs, maintenance teams and industrial buyers a practical way to add variable speed control to permanent magnet, shunt wound and universal DC motor applications. The range spans sub-fractional horsepower through to 5 horsepower and includes SCR Vari-Drive style controls and other DC drive formats housed in rugged NEMA 1 enclosures.
These drives are commonly selected where speed adjustment, current limit protection or compact DC motor control is needed for industrial or OEM equipment. Depending on the model, options are available across 115 and 230 VAC single-phase supply, with armature voltages such as 90 VDC and 180 VDC to suit different motor types.
Selection Guidance
The best KB Electronics DC drive choice depends on the motor, the available supply and any accessory requirements. In most cases, the starting point is the motor nameplate, the armature voltage and current rating, and the required speed range.
If you are comparing options, it also helps to confirm whether the application needs current limit/torque control, a specific enclosure style, or accessories such as a plug-in horsepower resistor and armature fuse matched to the motor. Motordrives Australia can help narrow the range and guide a suitable drive option based on the application details.
Product Availability
This collection page is set up as the parent page for the KB Electronics DC drive range. Individual model cards can be added into this collection as you upload them, while the page already acts as a dedicated landing page for the broader DC drive category.
Where KB Electronics DC Drives Are Used8 common applications and sectors
KB Electronics DC drives suit machinery and process applications where speed adjustment, current limit protection or compact DC motor control is required.
- 01
Conveyors And Materials Handling
DC drives help control conveyor speed and match motor output to production flow.
- 02
Packaging Machinery
Variable speed control supports repeatable machine timing across filling, sealing, labelling and handling equipment.
- 03
Pumps And Mixers
Drive control can help match motor speed to load requirements in pumping and mixing applications.
- 04
Magnetic Particle Clutches
Selected DC drives can be used to control magnetic particle clutches in addition to PM and shunt wound DC motors.
- 05
Manufacturing Lines
DC drives are used where machines need adjustable speed and more consistent motor behaviour.
- 06
OEM Machinery
Machine builders can integrate KB Electronics DC drives into equipment requiring compact and application-specific motor control.
- 07
Workshop And Light Industrial Equipment
Fractional and sub-fractional horsepower drive options suit smaller machines where practical motor speed adjustment is required.
- 08
Retrofit And Maintenance Projects
KB Electronics DC drives can be considered when replacing older speed control equipment or improving existing machinery.
Selection Support
What To Prepare Before Enquiring
The best DC drive recommendation starts with the motor and the application. Supplying the right information early helps our team narrow down the suitable KB Electronics drive type, enclosure style and accessory requirements.
- Motor type, motor horsepower and motor nameplate details
- Armature voltage and rated armature current
- Supply voltage and input phase available on site
- Required output speed range and current limit needs
- Preferred enclosure type, such as NEMA 1
- Whether a plug-in horsepower resistor or other accessory is required
KB DC Drive Specification Support
Motordrives Australia can help review the application details and guide you towards a suitable KB Electronics DC drive for your motor, operating conditions and installation environment.
- Drive Types
- SCR Vari-Drive style and other DC motor speed controls
- Motor Compatibility
- Permanent magnet, shunt wound and universal DC motors
- Voltage Options
- 115 and 230 VAC, 50/60 Hz
- Enclosure Options
- NEMA 1 and other formats depending on model
Why Motordrives Australia
Industrial Drive Support For Australian Businesses
Motordrives Australia supplies electric motors, gearmotors, motor controllers and power transmission products for industrial applications.
02
Enquiry-Based Supply
Our enquiry process gives engineers, procurement teams and business owners a direct path to ask questions, provide application details and request a quote.
03
Support Across Motor And Drive Systems
Because we work across motors, gearmotors, controllers and power transmission products, we can consider the wider drive system rather than treating the DC drive as an isolated component.
Common Questions
KB Electronics DC Drive FAQs
What are KB Electronics DC drives used for?
KB Electronics DC drives are used to control the speed of DC motors in industrial machinery where adjustable operating speed and current limit protection are needed.
What motor types can KB DC drives support?
KB DC drives are commonly used with permanent magnet (PM), shunt wound and universal DC motors, and some models can also control magnetic particle clutches.
What horsepower range is covered?
The DC drive range covers sub-fractional horsepower through to 5 horsepower, including common industrial requirements from small machinery up to larger low-horsepower process equipment.
What voltage options are available?
KB Electronics DC drives are commonly available across 115 and 230 VAC supply options, with armature voltages such as 90 VDC and 180 VDC depending on the model and motor.
Do KB DC drives require any additional accessories?
Some models require a plug-in horsepower resistor and an armature fuse matched to the specific motor's horsepower and current rating. Motordrives Australia can help confirm which accessories are required.
Can you help choose the right DC drive?
Yes. Provide the motor nameplate details, armature voltage, supply voltage and application requirements, and Motordrives Australia can help guide a suitable option.
Need A KB Electronics DC Drive For Your Application?
Send through your motor details, supply voltage and application requirements and our team can help you identify a suitable KB Electronics DC drive for your machinery, OEM build or maintenance project.
